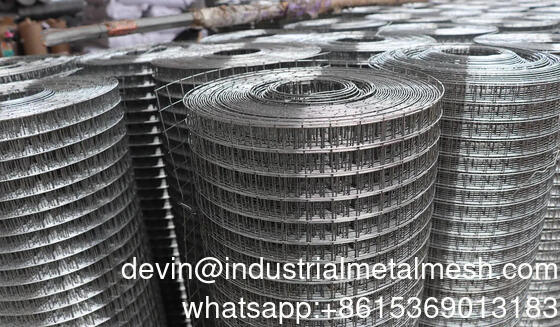

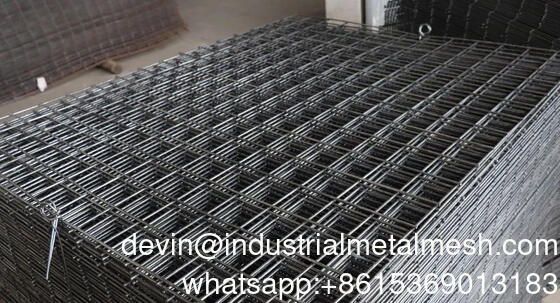

Welded wire mesh can be divided into 2 types according to different flexibility: welded mesh panel and welded mesh roll. Panel common size is 1800 mm × 3000 mm, we also accept other requirements. Welded mesh roll has better flexibility.
Welded wire mesh is made of low carbon steel wire, which has galvanized and PVC-coated surfaces, which have great anti-corrosion, anti-rust, and weather resistance. Firm structure and high tensile strength are also the features of welded wire mesh, which makes it widely used to make gabion, plaster walls, animal cages, and plant trellis.
| Tolerances on Mesh Dimensions |
| Mesh Dimensions(mm) |
Tolerance(mm) |
| < 50 |
±2.0 |
| ≥50 to < 200 |
±3.0 |
| Mesh Size and Wire Diameter |
| Mesh Size |
Wire Diameter Before & After PVC Coat |
| mm |
inch |
BWG No. |
Before Coated (mm) |
After Coated (mm) |
| 6.4 |
1/4 |
24-22 |
0.56-0.71 |
0.90-1.05 |
| 9.5 |
3/8 |
23-19 |
0.64-1.07 |
1.00-1.52 |
| 12.7 |
1/2 |
22-16 |
0.71-1.65 |
1.10-2.20 |
| 15.9 |
5/8 |
21-16 |
0.81-1.65 |
1.22-2.30 |
| 19.1 |
3/4 |
21-16 |
0.81-1.65 |
1.24-2.40 |
| 25.4 × 12.7 |
1 × 1/2 |
21-16 |
0.81-1.65 |
1.24-2.42 |
| 25.4 |
1 |
21-14 |
0.81-2.11 |
1.28-2.90 |
| 38.1 |
1 1/2 |
19-14 |
1.07-2.11 |
1.57-2.92 |
| 25.4 × 50.8 |
1 × 2 |
17-14 |
1.47-2.11 |
2.00-2.95 |
| 50.8 |
2 |
16-12 |
1.65-2.77 |
2.20-3.61 |
| Welded Wire Mesh Roll Size |
| Mesh Inch |
Width × Length |
| 1/2 |
3 ft. × 50 ft. |
| 1/2 |
4 ft. × 50 ft |
| 1/2 |
5 ft. × 50 ft. |
| 1/2 |
6 ft. × 50 ft. |
| 3/4 |
3 ft. × 50 ft |
| 3/4 |
4 ft. × 50 ft. |
| 3/4 |
5 ft. × 50 ft |
| 3/4 |
6 ft. × 50 ft. |
| 1 |
3 ft. × 50 ft. |
| 1 |
4 ft. × 50 ft. |
| 1 |
5 ft. × 50 ft. |
| 1 |
6 ft. × 50 ft. |
| Welded wire Mesh Panels Common Specification |
| Mesh |
Wire Diameter |
| Expressed in Inches |
Millimeters |
Diameter |
Millimeters |
| 1" × 1" |
25 mm × 25 mm |
11 G - 14 G |
2 mm - 3 mm |
| 2" × 1" |
50 mm × 25 mm |
8 G - 14 G |
2 mm - 4 mm |
| 2" × 2" |
50 mm × 50 mm |
8 G - 14 G |
2 mm - 4 mm |
| 3" × 2" |
75 mm × 50 mm |
6 G - 14 G |
2 mm - 5 mm |
| 3" × 3" |
75 mm × 75 mm |
6 G - 14 G |
2 mm - 5 mm |
| 4" × 2" |
100 mm × 50 mm |
4 G - 14 G |
2 mm - 6 mm |
| 4" × 4" |
100 mm × 100 mm |
4 G - 14 G |
2 mm - 6 mm |
| 5" × 5" |
125 mm × 125 mm |
4 G - 14 G |
2 mm - 6 mm |
| 6" × 6" |
150 mm × 150 mm |
4 G - 14 G |
2 mm - 6 mm |
| Note: Special specifications can be customized. |
Detailed Photos
Product Parameters
| Specification |
| Opening |
Wire Diameter |
| Inch |
metric Unit(mm) |
| 1"x1" |
25mmx25mm |
2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x2" |
50mmx50mm |
2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x3" |
50mmx70mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 2"x4" |
50mmx100mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.0mm |
| 2"x6" |
50mmx150mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 2"x8" |
50mmx200mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 3"x3" |
75mmx75mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm |
| 3"x4" |
75mmx100mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 4"x4" |
100mmx100mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 5"x5" |
125mmx125mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| 6"x6" |
150mmx150mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| Technical Note: |
|
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m
2.Special size available at request
|
Packaging & Shipping
1. in bulk
2. plastic film or woven on both of the sides
3. on pallet
4. customized
Company Profile
Hebei Qijie Wire Mesh MFG Co., Ltd. is located in Anping county, Northern China, which is famous as "the hometown of wire mesh" in the country. The company was founded in 1999 with a registered capital of 500,000 US dollars, covering 40,000 square meters, has 3 plant areas, 22 stainless steel woven mesh machines, 28 welded wire mesh machines, 11 double twisted hexagonal gabion baskets machines, 8 cutting and flattening mesh machines, and 2 automatic PVC coating lines. Qijie does sales both home and abroad with annual amount of more than $ 20 million, the main products are stainless steel fly screen mesh, fence panels, gabion baskets, woven screening mesh, welded wire mesh, expanded metal mesh, perforated metal and various wire products. Our main aim is to ensure customer satisfaction by providing superior quality products at reasonable prices. We use meticulous quality control procedures and analysis in order to ensure our products meet the international standards. A combination of competitive prices, on-time delivery and quality guarantee will make us our customer's best choice
FAQ
1. who are we?
We are based in Hebei, China, start from 2015,sell to North America(20.00%),South America(10.00%),Oceania(10.00%),Southeast Asia(10.00%),South Asia(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%),Domestic Market(5.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Welded Mesh Panel, Wire Mesh
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,AUD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
