جزئیات محصول:
پرداخت:
|
| شکل سوراخ: | مربع | سیم سنج: | 2.0-4.0mm |
|---|---|---|---|
| برنامه: | مش سیم ساختمانی | مواد: | سیم آهن کم کربن، سیم آهن گالوانیزه |
| تایپ کنید: | مش جوش خورده | دیافراگم: | 1/2" |
| درمان سطحی: | گالوانیزه داغ | عرض: | 0.5-2 متر، 0.5-1.8 متر، 300 میلی متر-2500 میلی متر، 0.5 متر تا 2.2 متر، 1.2 متر |
| طول: | 5 متر | استفاده: | ساخت و ساز ساختمان |
| بسته بندی: | پالت | نام محصول: | مش سیم جوش داده شده، مش سیم جوش داده شده با روکش گالوانیزه / PVC |
| رنگ: | نقره ای | ||
| برجسته کردن: | black welded wire mesh panel,3.4mm wire mesh for fencing,15cm welded mesh for Canada,3.4mm wire mesh for fencing,15cm welded mesh for Canada |
||

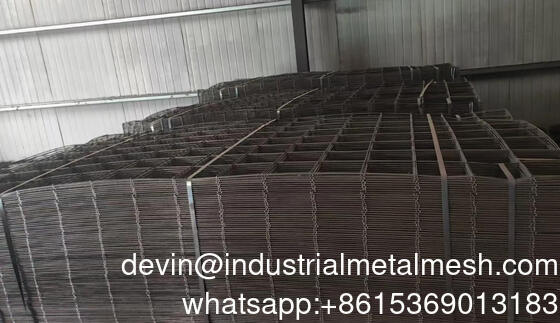

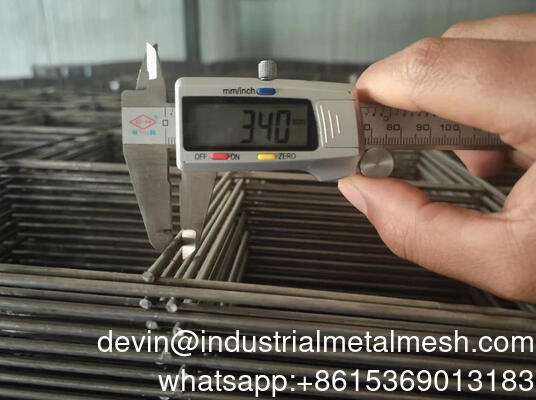

3.4mm Wire*15cm Mesh *1.22*2.44 Black Welded Wire Mesh Panel for Canada
Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
welded wire mesh panel Welded wire mesh panels material: black iron wire , galvanized before welding, galvanized after welding, hot-dipped galvanized welding, PVC coated, PE Coated,Powder coating. Welded wire mesh panels made from galvanized wire or black iron steel wire, also can be PVC coated or Powder coating to shield them from corrosion and rust. welded wire mesh panels can be used for a wide range of applications usage like below: security cages, security fencing,metal fencing, dog fencing, animal enclosures, aviaries, bird cages, pet hutches, cat fences, pond covers or protection, garden fencing,construction materials.
Welded wire mesh panels material: black iron wire , galvanised before welding, galvanised after welding, hot-dipped galvanised welding, PVC coated, PE Coated,Powder coating.
Welded wire mesh panels made from galvanised wire or black iron steel wire, also can be PVC coated or Powder coating to shield them from corrosion and rust.
welded wire mesh panels can be used for a wide range of applications usage like below: security cages, security fencing,metal fencing, dog fening, animal enclosures, aviaries, bird cages, pet hutches, cat fences, pond covers or protection, garden fencing,construction materials.
Feature: corrosion resistance, aging resistance, sunshine resistance and weather resistance.
Forms of corrosion resistance: Electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC coating.
![]()
| Opening (inch) | Opening (mm) | Wire Diameter | Wire Diameter | Panel Length | Panel Width |
| 1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm | | |
| 2"x1" | 50mmx25mm | 14#-8# | 2.0mm-4mm | ||
| 2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm | ||
| 3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm | ||
| 3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm | ||
| 4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm | ||
| 4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm | ||
| 5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm | ||
| 6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
![]()
Galvanized welded mesh panel | |||
Hole size | Wire diameter | Panel sizes | |
In Inch | In mm | In mm | Common sizes : 3' x 6' , 4' x 8' , 5' x 10' 1 x 2m ,2 x 2.9m , 2 x 4m Other sizes can be made as request . |
1/2'' x 1/2'' | 12.7 x 12.7mm | 1.0mm-2.0mm | |
1'' x 1'' | 25.4 x 25.4mm | 1.5mm-3.5mm | |
1'' x 2'' | 25.4 x 50.8mm | 2.0mm-5.0mm | |
5/4'' x 5/4'' | 31.8 x 31.8mm | 2.0mm-4.0mm | |
3/2'' x 3/2'' | 38.1 x 38.1mm | 2.0mm-5.0mm | |
2'' x 2'' | 50.8 x 50.8mm | 2.0mm-6.0mm | |
2'' x 3'' | 50.8 x 76.2mm | 2.0mm-6.0mm | |
3'' x 3'' | 76.2 x 76.2mm | 3.0mm-7.0mm | |
4'' x 4'' | 101.6 x 101.6mm | 3.0mm-8.0mm | |
5'' x 5'' | 127 x 127mm | 4.0mm-9.0mm | |
6'' x 6'' | 152.4 x 152.4mm | 4.0mm-10.0mm | |
![]()
