Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh

Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh
Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh

تصویر بزرگ :  Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh

جزئیات محصول:
محل منبع: چین
نام تجاری: QiJie
گواهی: ISO9001:2008, SGS, CE
شماره مدل: 01WWM
پرداخت:
مقدار حداقل تعداد سفارش: 50 رول
قیمت: USD9.90-USD45.90
جزئیات بسته بندی: فیلم پلاستیکی یا کاغذ ضد آب
زمان تحویل: 10-25 روز
شرایط پرداخت: TT ، LC ،
قابلیت ارائه: 1000 رول/روز
توضیحات محصول جزئیات
مواد: سیم فولاد کربنی باز شدن مش: 12 × 12، 20 × 20، 25 × 25، 12 × 25 میلی متر
قطر سیم: 0.4 میلی متر - 1.5 میلی متر عرض رول: 0.4 متر، 0.5 متر، 0.6 متر، 0.8 متر، 1.0 متر، 1.25 متر، 1.5 متر، 2.0 متر
طول رول: 15 میلیون، 30 میلیون، 50 میلیون و غیره درمان سطحی: گالوانیزه گرم یا گالوانیزه برقی
شماره مدل: xx-01001 کاربرد:: مش
ایمیل: devin@industrialmetalmesh.com واتساپ: +8615369013183
برجسته کردن:

1x2 welded wire mesh panel,welded wire mesh fencing,galvanized welded wire mesh

,

welded wire mesh fencing

,

galvanized welded wire mesh

Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh​


Product Description:

Welded wire mesh is made of high quality low carbon steel wire line of welding and become, then cold (plating), hot dip plating, PVC plastic coated surface passivation, plasticizing process, smooth surface, uniform mesh, solder joints strong, local good machining performance, stability and good anti-corrosion.

Surface treatment: Hot-dipped galvanized after welding, hot dipped galvanized before welding, PVC coated wire mesh, electro galvanized after welding, electro galvanized before welding and stainless steel welded wire mesh.



Assortment:
Electro galvanized before welded;
Electro galvanized after welded;
Hot dipped galvanized before welded;
Hot dipped galvanized after welded;
PVC coated with Green, black etc;
Black Wire Panel;
Stainless steel welded wire mesh;
Welded Mesh Panel;
Euro Fence.


Welded wire mesh can be supplied in rolls or panels and is widely applied in fencing systems, enclosures, reinforcement works, safety protection, shelving, partitions, animal containment, and general construction projects. Its versatility and uniform structure make it suitable for agricultural, industrial, and commercial applications.

 - Hot-dipped Galvanized Welded Wire Mesh (HDG)
Hot-dipped galvanized welded wire mesh is produced from low carbon steel wire such as Q195 or Q235, with zinc coating applied after welding.
This process provides a thicker zinc layer and stronger corrosion resistance, making it suitable for long-term outdoor use, fencing systems, and harsh environments.

- Electro Galvanized Welded Wire Mesh (EG)
Electro galvanized welded wire mesh is made from low carbon steel wire, typically Q195, with zinc coating applied by electroplating.
It features a smooth and bright surface with basic rust protection, suitable for indoor use or light outdoor applications.

- PVC Coated Welded Wire Mesh
PVC coated welded wire mesh is manufactured from galvanized welded mesh and then coated with PVC.
The PVC layer provides additional corrosion resistance, color options, and longer service life, commonly used for garden fencing, poultry enclosures, and decorative fencing.

- Stainless Steel Welded Wire Mesh
Stainless steel welded wire mesh is produced from 304 or 316 stainless steel wire, offering excellent corrosion resistance, strength, and hygiene performance.
It is suitable for industrial, food-related, chemical, and high-end applications.

Opening
Wire Diameter
Width 0.4-2m
Length 5-50m
Electric galvanized before welded,
Electric galvanized after welded,
Hot-dipped galvanized before welded,
Hot-dipped galvanized after welded,
PVC coated,
Stainless steel wire
Inch
Metric Unit
1/2"×1/2"
12.7mm×12.7mm
BWG22-19
BWG21-18
BWG20-18
BWG19-17
3/4"×3/4"
19.1mm×19.1mm

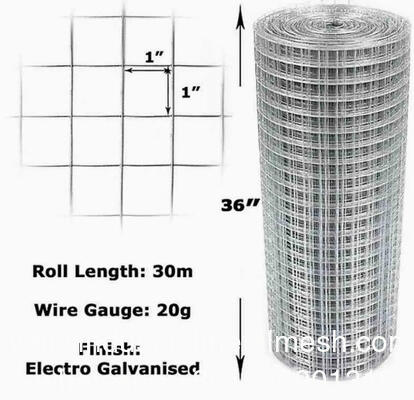

1"×1"
25.4mm×25.4mm
2"×1"
50.8mm×25.4mm
BWG16-14
BWG15-14
BWG15-13
BWG14-13
BWG13-11
2"×2"
50.8mm×50.8mm
3"×2"
76.2mm×50.8mm
4"×2"
101.6mm×50.8mm
4"×3"
101.6mm×76.2mm
4"×4"
101.6mm×101.6mm
Packing: In waterproof paper in rolls. Custom packing available at request.


 Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh 0

Transparency here reduces post-purchase inquiries. List package contents (e.g., product, USB-C cable, multilingual manual, warranty card) and highlight sustainable packaging (e.g., "100% recyclable materials"). Clarify shipping timelines by region (e.g., "EU: 5–7 business days," "APAC: 10–15 business days") and costs (e.g., "Free shipping on orders over $50"). State customs/duty responsibilities (e.g., "Duties calculated at checkout") and offer damage protection (e.g., "Free replacements for shipping-damaged items"). Add tracking instructions or icons (e.g.,) for clarity.



The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.



Characteristics of stainless steel 304D

1. Corrosion resistance. Uniform corrosion resistance in dilute hydrochloric acid, dilute sulfuric acid, acetic acid + salt and other environments is far better than 304 material

2. High strength and high wear resistance. The yield strength is 1.3 times or more than 304, and the elongation is not less than 45%.

3. Good welding performance, the strength after welding is higher than 304 material

4.Flame Retardant and safe


Welded wire mesh is designed to provide structural strength, dimensional accuracy, and long service life. The welding process ensures each intersection is firmly bonded, resulting in a rigid mesh that maintains its shape under load and during installation.

Compared with woven wire mesh, welded wire mesh offers higher rigidity and easier installation, making it suitable for large-area applications and standardized construction projects.

- Strong welded intersections ensure stable structure
- Uniform mesh opening for consistent performance
- Flat surface, easy to cut, bend, and install
- Available in rolls or panels for different applications
- Suitable for various surface treatments and environments


Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh 1

Guarantee
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price
2.The goods can be returned or compensated if the quality is not ok
3.There is no "cheat" and "misunderstanding" in Maishi

Packing

To well protect the meshes, usually we wrap the mesh with plastic film, or waterproof paper.
Sometimes if the customer request, we will wrap another layer of shrink film outside of the waterproof paper.
Then meshes will be load onto pallets or containers.

Payment term
1)100%T/T in advance if order amount less than USD10000.00
2) 30% paid in advance and 70% balance paid before shipment if order amount more than USD10000.00.
3) Irrevocable L/C at sight.
Any other payment term can be negotiable



Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.


Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh 2 Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh 3

Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh 4 Best Price 1X2 Welded Wire Mesh Panel Welded Wire Mesh 5


Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
