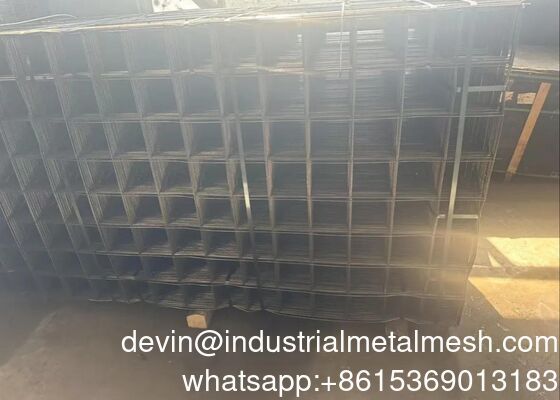

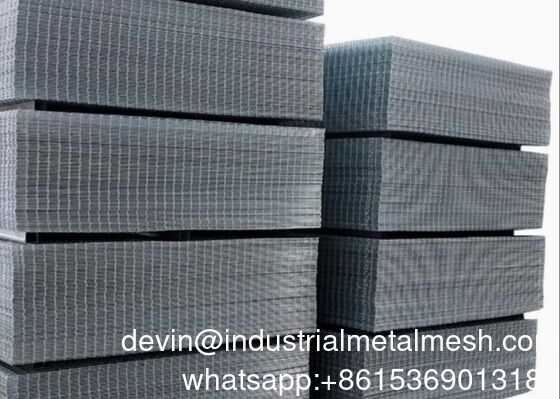

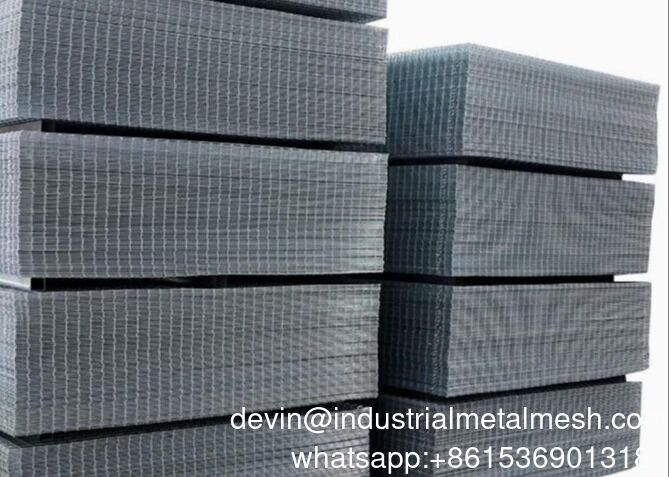

Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels

گواهی
چین Hebei Qijie Wire Mesh MFG Co., Ltd گواهینامه ها
چین Hebei Qijie Wire Mesh MFG Co., Ltd گواهینامه ها
نظرات مشتریان
بله ما مش سیم تقویتی را دریافت کرده ایم و با کیفیت بسیار خوشحالیم. خیلی ممنون کریس

—— کریس جانسون

من سفارش پودر پوشش T 316 پرواز صفحه نمایش مش از Qijie؛ بر خلاف دیگران، هرگز دستورات را فراموش نمی کنند و همیشه مواد با کیفیت را به من عرضه می کنند.

—— مایکل جی. وینادا

تجربه خرید بسیار بدی با تامین کننده قبلی داشتم، زیرا همیشه حمل و نقل را به تعویق می انداخت. به هیجان من، کیجیه همیشه حقوقی است.

—— سوزان میلر

محصول شما

—— جاتوپورن ته نگوگ

چت IM آنلاین در حال حاضر

Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels

Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels
Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels

تصویر بزرگ :  Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels

جزئیات محصول:
محل منبع: چین
نام تجاری: QiJie
گواهی: ISO9001:2008, SGS, CE
شماره مدل: 01WWM
پرداخت:
مقدار حداقل تعداد سفارش: 50 رول
قیمت: USD9.90-USD45.90
جزئیات بسته بندی: فیلم پلاستیکی یا کاغذ ضد آب
زمان تحویل: 10-25 روز
شرایط پرداخت: TT، LC،
قابلیت ارائه: 1000 رول در روز
توضیحات محصول جزئیات
مواد: سیم فولاد کربنی باز شدن مش: 12 × 12، 20 × 20، 25 × 25، 12 × 25 میلی متر
قطر سیم: 0.4 میلی متر - 1.5 میلی متر عرض رول: 0.4 متر، 0.5 متر، 0.6 متر، 0.8 متر، 1.0 متر، 1.25 متر، 1.5 متر، 2.0 متر
طول رول: 15 میلیون، 30 میلیون، 50 میلیون و غیره درمان سطحی: گالوانیزه گرم یا گالوانیزه برقی
شماره مدل: xx-01001 کاربرد:: مش حصار
ایمیل: devin@industrialmetalmesh.com واتساپ: +8615369013183
برجسته کردن:

100x100 galvanized welded wire mesh,welded wire mesh panels with warranty,galvanized wire mesh for construction

,

welded wire mesh panels with warranty

,

galvanized wire mesh for construction

Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels​


Product Description:


welded wire mesh panel Welded wire mesh panels material: black iron wire , galvanized before welding, galvanized after welding, hot-dipped galvanized welding, PVC coated, PE Coated,Powder coating. Welded wire mesh panels made from galvanized wire or black iron steel wire, also can be PVC coated or Powder coating to shield them from corrosion and rust. welded wire mesh panels can be used for a wide range of applications usage like below: security cages, security fencing,metal fencing, dog fencing, animal enclosures, aviaries, bird cages, pet hutches, cat fences, pond covers or protection, garden fencing,construction materials.
Specification
Opening
Wire Diameter
Inch
metric Unit(mm)
1"x1"
25mmx25mm
2.5mm,2.0mm,1.8mm,1.6mm
2"x2"
50mmx50mm
2.5mm,2.0mm,1.8mm,1.6mm
2"x3"
50mmx70mm
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4"
50mmx100mm
6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6"
50mmx150mm
6.0mm,5.0mm,4.0mm,3.0mm
2"x8"
50mmx200mm
6.0mm,5.0mm,4.0mm,3.0mm
3"x3"
75mmx75mm
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4"
75mmx100mm
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4"
100mmx100mm
6.0mm,5.0mm,4.0mm,3.0mm
5"x5"
125mmx125mm
6.0mm,5.0mm,4.0mm,3.0mm
6"x6"
150mmx150mm
6.0mm,5.0mm,4.0mm,3.0mm
Technical Note:
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m
2.Special size available at request


 Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels 0

Transparency here reduces post-purchase inquiries. List package contents (e.g., product, USB-C cable, multilingual manual, warranty card) and highlight sustainable packaging (e.g., "100% recyclable materials"). Clarify shipping timelines by region (e.g., "EU: 5–7 business days," "APAC: 10–15 business days") and costs (e.g., "Free shipping on orders over $50"). State customs/duty responsibilities (e.g., "Duties calculated at checkout") and offer damage protection (e.g., "Free replacements for shipping-damaged items"). Add tracking instructions or icons (e.g.,) for clarity.



The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.



Characteristics of stainless steel 304D

1. Corrosion resistance. Uniform corrosion resistance in dilute hydrochloric acid, dilute sulfuric acid, acetic acid + salt and other environments is far better than 304 material

2. High strength and high wear resistance. The yield strength is 1.3 times or more than 304, and the elongation is not less than 45%.

3. Good welding performance, the strength after welding is higher than 304 material

4.Flame Retardant and safe


Welded wire mesh is designed to provide structural strength, dimensional accuracy, and long service life. The welding process ensures each intersection is firmly bonded, resulting in a rigid mesh that maintains its shape under load and during installation.

Compared with woven wire mesh, welded wire mesh offers higher rigidity and easier installation, making it suitable for large-area applications and standardized construction projects.

- Strong welded intersections ensure stable structure
- Uniform mesh opening for consistent performance
- Flat surface, easy to cut, bend, and install
- Available in rolls or panels for different applications
- Suitable for various surface treatments and environments


Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels 1

Guarantee
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price
2.The goods can be returned or compensated if the quality is not ok
3.There is no "cheat" and "misunderstanding" in Maishi

Packing

To well protect the meshes, usually we wrap the mesh with plastic film, or waterproof paper.
Sometimes if the customer request, we will wrap another layer of shrink film outside of the waterproof paper.
Then meshes will be load onto pallets or containers.

Payment term
1)100%T/T in advance if order amount less than USD10000.00
2) 30% paid in advance and 70% balance paid before shipment if order amount more than USD10000.00.
3) Irrevocable L/C at sight.
Any other payment term can be negotiable



Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.


Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels 2 Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels 3

Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels 4 Factory Sale 100 X 100 Galvanized Welded Wire Mesh Panels 5

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
