China Customized Stackable Foldable Steel Welded Heavy Duty Wire Mesh Pallet Stillage Cage

China Customized Stackable Foldable Steel Welded Heavy Duty Wire Mesh Pallet Stillage Cage
China Customized Stackable Foldable Steel Welded Heavy Duty Wire Mesh Pallet Stillage Cage China Customized Stackable Foldable Steel Welded Heavy Duty Wire Mesh Pallet Stillage Cage

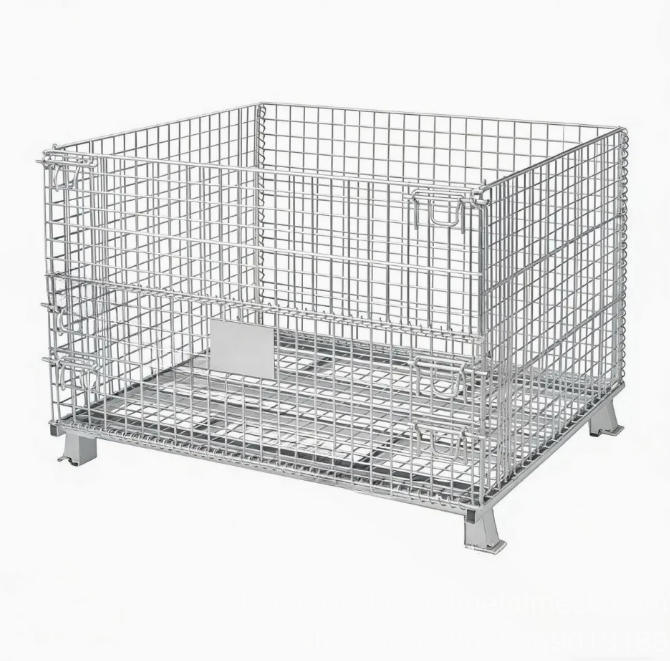

تصویر بزرگ :  China Customized Stackable Foldable Steel Welded Heavy Duty Wire Mesh Pallet Stillage Cage

جزئیات محصول:
محل منبع: چین
نام تجاری: qijie
گواهی: Collapsible Wire Mesh Metal Basket
شماره مدل: سبد فلزی قابلمه
پرداخت:
مقدار حداقل تعداد سفارش: 10 عدد
جزئیات بسته بندی: کارتن کاغذی
زمان تحویل: 5-8 روز
شرایط پرداخت: 30% TT از قبل، تعادل قبل از بارگیری
توضیحات محصول جزئیات
مواد: فولاد درمان سطحی: گالوانیزه داغ
تایپ کنید: ظرف سیمی ظرفیت بارگیری: 500 کیلوگرم
ایمیل: devin@industrialmetalmesh.com واتساپ: +8615369013183
برجسته کردن:

stackable wire mesh pallet cage,foldable steel welded stillage,heavy duty wire mesh basket

,

foldable steel welded stillage

,

heavy duty wire mesh basket

China Customized Stackable Foldable Steel Welded Heavy Duty Wire Mesh Pallet Stillage Cage​



Wire Mesh Cage is also called as wire container or wire basket, which is durable and stronger, at the same time, it is easy to folding down and stacking high. Because wire container has special strong feet and heavy duty under-sturcture which gives the ability to stack 4 high with heavy loads.Good visibility and same loading space by using wire container make the warehouse management unitized and standard. When unused, the wire container can be folded down to save space.

It is easy for forklift accessing from four sides. Optional accessories include dividers, shelves, card holders, name plates, casters, locking security lid, fork pockets, bar runners for storage on rack beams.

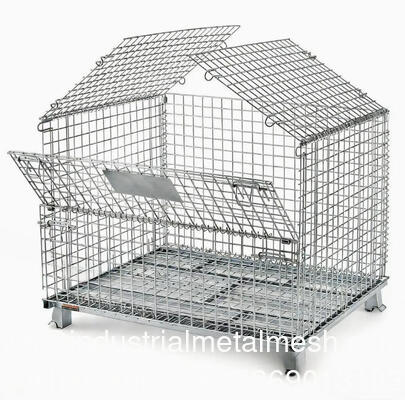

China Customized Stackable Foldable Steel Welded Heavy Duty Wire Mesh Pallet Stillage Cage 0



The roll container is great for moving products or stocks from one place to another. This is ideal for ratail bussiness and distribution center. It is suitable for any industrial.

Size 1200Lx800Wx1000Hmm(Cusomized) Wire gauge 5-12 mm
Mesh size Customized Load capacity 800kgs
Production 15-20days normally Materials Steel Q235
Finish Zinc/hot dip galvanized/powder coating
Highlights

1.Stackable for space-saving

2.Fireproof for safety

3.Corrosion protection

4.Various application:Warehouse,supermarket,PET preform,Auto industry,etc.

Details of   heavy duty collapsible roll cage with wheels.
Same design, different sizes
Model No. Exterior Dimension Interior High Wire Guage Grid Size Loading Capacity Loaded in 1x40'GP
  LxWxH(mm) mm mm mm kg sets
JM-CP001 1200x800x1000 850 ¢5-¢12 60x103 800 480
JM-CP002 1000x1200x1450 1300 ¢5-¢10 60x105 1000 280
JM-CP003 1200x1000x1200 1200 ¢5-¢10 60x105 800 460
JM-CP004 1200x1000x1000 1000 ¢5-¢10 60x105 800 480
JM-CP005 1200x800x1000 1000 ¢5-¢10 60x105 800 480
Material Mild steel Q235
Application area Warehouse, logistic, mass retail, recycling industry, etc.
Finish Zinc/hot dip galvanized/powder coating
Remark Costomized or OEM support
Main Features 1.Collapsible-save space when not in use,ideal for return journeys
2.Bright electro zinc plated finish
3.Standard half-hinged gate access
4.Long lasting,economical alternative to disposable packing
5.Open wire mesh design allows for full visibility for inventory checks,ventilation and cleaness.
6.Four-way entry for easy use with lift trucks

storage cage

Warehouse cage, also known as warehouse cage and butterfly cage, is an important kind of logistics container in warehousing and transportation. It has the advantages of fixed storage capacity, neat storage, clear storage, easy inventory counting and so on. At the same time, it also improves the effective utilization of warehouse space. The storage cage can be folded freely and stored when not in use.



Details

1. It is made of high-quality steel and cold-rolled and hardened, with high strength and large loading capacity.

2. Uniform specifications, fixed capacity, storage of goods at a glance, easy to inventory inventory.

3. The surface is galvanized, beautiful and anti-oxidation, and has a long service life.

4. It adopts international standards and can be used with containers to effectively improve space utilization.

5. Can be stacked on top of each other to achieve three-dimensional storage.

6. Environmentally friendly treatment, health immunization, turnover, storage and recycling do not pollute the environment.

7. Efficient operation can be carried out with equipment such as forklifts, cattle, elevators and cranes.

8. The folding structure has low recycling cost and is an alternative to wooden crates.

9. Wheels can be mounted at the bottom, making it easy to turn around inside the factory.




Specification

Product name Foldable Wire Mesh cage
Color Regular is Silvery/Supports various color customization
Load Capacity 200-1500KG
Specifications Length:800-1800mm
Width:600-1200mm
Height:640-1350mm
Specific specifications and dimensions
Outer Dimension
L*W*H (mm)
Inside Dimension
L*W*H (mm)
Mesh Size
(mm)
Wire Diameter
(mm)
Net Weight
(KG)
800*600*640 750*550*500 50*50 5.0 20.6
800*600*640 750*550*500 50*50 5.5 22.4
800*600*640 750*550*500 50*50 5.8 25.9
800*600*640 750*550*500 50*50 6.0 28
1000*800*840 950*750*700 50*100 5.0 27.6
1000*800*840 950*750*700 50*50 5.0 31.2
1000*800*840 950*750*700 50*50 5.5 34.6
1000*800*840 950*750*700 50*100 5.8 37.5
1000*800*840 950*750*700 50*50 5.8 41.1
1000*800*840 950*750*700 50*50 6.0 43
1200*1000*890 1150*950*750 50*100 5.0 35.9
1200*1000*890 1150*950*750 50*50 5.0 42.5
1200*1000*890 1150*950*750 50*100 5.5 39.3
1200*1000*890 1150*950*750 50*100 5.8 46.6
1200*1000*890 1150*950*750 50*50 5.8 53.6
1200*1000*890 1150*950*750 50*50 6.0 60
1500*1100*1100 1450*1050*960 50*100 5.8 63.5
1600*1200*1340 1550*1150*1200 50*100 5.8 77.5
1800*1200*1350 1750*1150*1110 50*100 5.8 90
All Wire Mesh Cage's Specifications, dimensions, and colors can be customizable.
If you have any further requirements, please click here to contact us for instant inquiry.




China Customized Stackable Foldable Steel Welded Heavy Duty Wire Mesh Pallet Stillage Cage 1

Features
I. Sliding locking handles hold drop side securely.

2. The "U" formed base channels welded by welding robots, ensuring welding quality and strong capacity.
3. Spiral hinge wire improves side panel steady and collapsible, foldable flat to save space.
4. Double welded wire construction to reinforce side panel for stack safety.
5. Arched steel legs design increase strength and aid stack high and steady.
6. "U" formed construction is welded underneath the side panel to avoid sliding.
7. Fasteners are used to joint side panels together, ensuring durability.
8. "U" formed loops work with handles to fix up the side panel and drop gates.
9. Holes punched on the U formed base channels for fixing the casters.
10. Steel name plate.



Advantages of foldable steel container:

1) Widely used in warehouse storage, and also in cargo transportation and transit.
2) Made of high-quality steel materials, stable and safe.
3) Heavy-duty, loading capacity 500-2500kg.
4) Can be stacked to over 4 layers, saved 20% of storae space
5) Suitable for forklifts operation.
6) Foldable / Collapsible, when not in use, to save storage space.





Packaging:
* Plastic banding & Stretch film wrapped
* easy loading and unloading with standard forklift truck
* as your requirement
Delivery:
7-15 days



China Customized Stackable Foldable Steel Welded Heavy Duty Wire Mesh Pallet Stillage Cage 2
