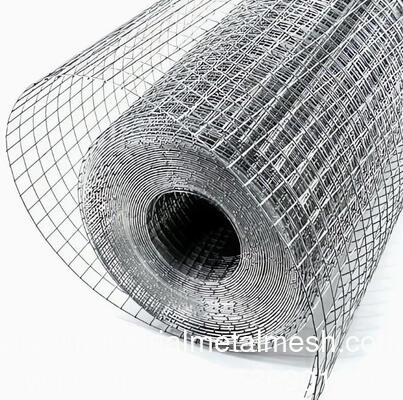

304 316 Stainless Steel Welded Wire Mesh for Construction and Decoration

304 316 Stainless Steel Welded Wire Mesh for Construction and Decoration

Introduction of Stainless Steel Welded Wire Mesh
Stainless steel welded wire mesh is a kind of welded mesh made of stainless steel wire by automatic welding machine. Compared with galvanized welded wire mesh, the corrosion resistance of stainless steel welded wire mesh depends on the material itself, not the surface coating, so the choice of its material is crucial.

Features of Stainless Steel Welded Wire Mesh
1. The outstanding feature of stainless steel welded wire mesh is that it is made of stainless steel wire, which usually has greater corrosion resistance and service life than ordinary hot-dip galvanized welded wire mesh.
2. Stainless steel welded wire mesh usually has better surface quality because it does not require surface plating treatment.
3. Stainless steel wire mesh made of food-grade stainless steel can be used in the food industry, while galvanized wire mesh is usually not directly in contact with food due to its plating process and the composition of the plating itself.
4. The performance determines the use, and the use determines the style of the finished product. According to the needs of use, stainless steel wire welded mesh can be further processed into a variety of stainless steel wire mesh products.

Specification Parameters of Stainless Steel Welded Wire Mesh
1. Grade of stainless steel material: commonly used are 304, 304L, 316, 316L, etc.
2. Wire diameter: according to the use of different requirements, the mesh wire and the edge wire can be selected from different wire diameter.
3. Mesh size: 1/2'', 1'', 1-1/2'', 2'', 3'', 4'', etc. Usually made into square holes, but also can be made into rectangular holes.
4. Form: stainless steel wire mesh sheet or stainless steel wire mesh roll.
5. Length and width: The size of the mesh sheet or roll depends on the requirements and convenience of actual use.

Applications of Stainless Steel Welded Wire Mesh
Because of its excellent tensile strength and corrosion resistance, stainless steel welded wire mesh is often used in the petroleum industry, chemical industry, mining industry, manufacturing industry, food industry, construction industry, indoor and outdoor decoration and other industries. For example, it can be used as wire mesh materials for reinforcement, fencing materials for field perimeters, structural materials for strong corrosive environments, industrial screens and filters, various customized materials for wire mesh decorations, food-grade stainless steel wire mesh products for food storage and processing, etc.

Galvanized Welded Wire Mesh

Galvanized welded wire mesh can be divided into electrical galvanized welded wire mesh, hot deep galvanized welded wire mesh.

Besides, according different processing methods, there are galvanized before welding wire welded mesh and galvanized after welding welded mesh.

Like electrical galvanized wire welded mesh, hot deep galvanized wire welded mesh, galvanized redrawing wire welded mesh, electrical galvanized(after welding) welded wire mesh, hot deep galvanized(after welding) welded wire mesh.

And Galvanized redrawing welded wire mesh is welding by high quality redrawing low carbon steel wire( the material of this kind wire is high quality hot-rolled wire rod. The main processes is Acid washing, galvanizing, and cold-drawing). The surface of this kind mesh is very bright. It is easy to transport and store. And the price is lower than electrical galvanized welded wire mesh. It is popular in the market. The usage of this kind mesh is same as black welded wire mesh.

Electrical galvanized welded mesh has 15g/m2 zinc coating in common. It was used in industrial, building, travel, mine etc.

Hot deep galvanized welded mesh has thicker zinc. The zinc coating is more than 122g/m2. And the quality is better than electrical galvanize. It usually used in external wall thermal insulation system, concrete pouring,poultry farm, oil, chemical, machines and exports etc.

Application:
In construction in the form of reinforcement brick mesh, welded bar gratings or wire mesh sandwich construction. A wire mesh sandwich construction which comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.
